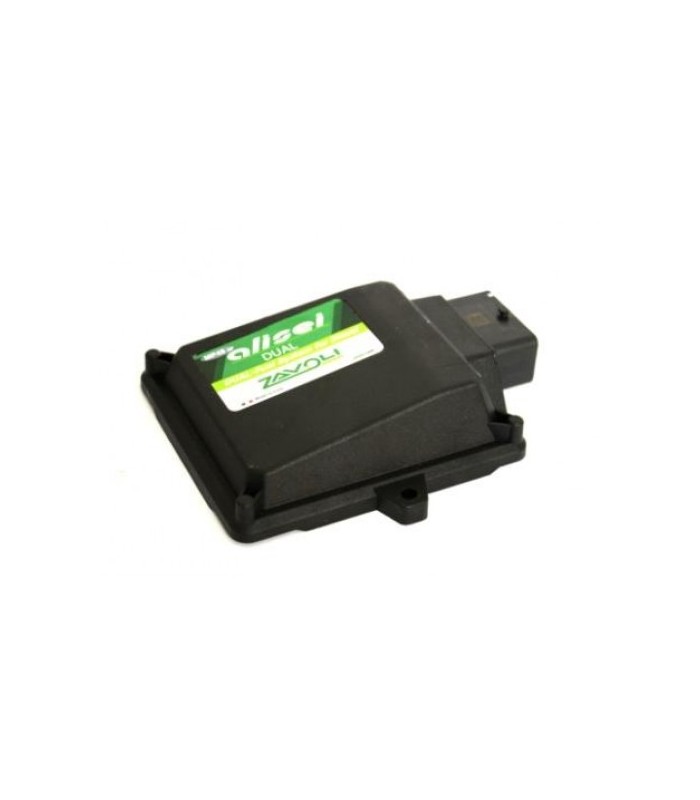

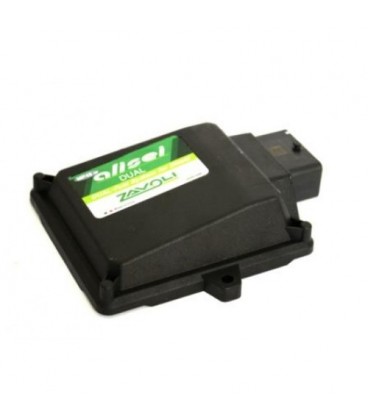

The ECU it processes the electronic parameters received from the Diesel injection ECU or from other additional electronic components, modifying and using them to drive the gas injectors.
TECHNICAL DATA SHEET | |
ITEM | DETAIL |
Operating Voltage | Vbatt = 10 ÷ 16V |
Operating temperature | -40 ÷ 110°C |
Current absorption with the actuators disabled | Imax ≤ 0.5A |
Current absorption in standby mode | Istandby ≤ 5mA |
Agreement | 10R-03 / 67R-01 / 110R-00 |
Actuators managed | |
Up to 2 gas injectors with the following characteristics | Imax= 6A, Vbatt,max= 16V |
2 power outputs for gas solenoid valves | Pmax = 25W, Imax = 2A (with 2 outputs enabled) Pmax = 50W, Imax = 4A (with 1 outputs enabled) |
Sensors managed | |
Gas pressure sensor | 463504000 |
MAP sensor | AEB031 |
Water temperature sensor | 4K7 |
Gas Level sensor: AEB level sensor | AEB, 0-90Ohm, non standard, non standard invertito |
Oxygen Sensor | Linear (Lambda sensor) |
