Lpg Eletronic AT07 Reducer

Lpg Eletronic AT07 Reducer

E010016__

E0100160 Reducer LPG ZAVOLI "AT07" 75KW

E0100161 Reducer LPG ZAVOLI "AT07" 105KW

E0100162 Reducer LPG ZAVOLI "AT07" 140KW

More details

Related Products


More info

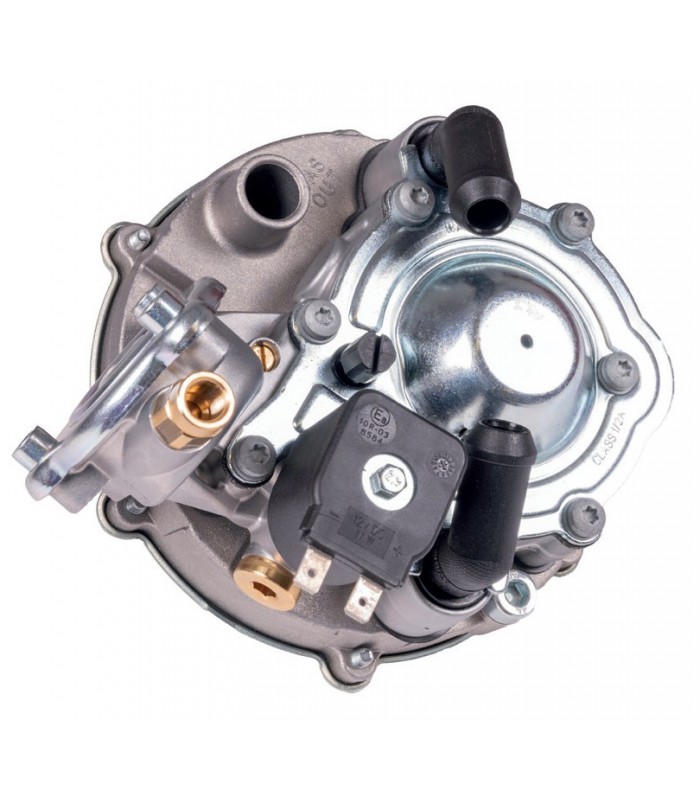

LPG reducer AT07, is a two stages electronic reducer, suitable for traditional carburated systems. It is equipped with an inlet solenoid valve and an integrated filter unit, to reduce the overall costs and permit an easier and faster installation. Three different versions, suitable for different engines, are available in our range. Includes bracket and accessories. Reducer to be combined with traditional LPG aspirated kits


DATA SHEET
TECHNICAL DATA SHEET
BuildingDouble stage type with
diaphragms
Inlet gas PressureMax 3 Mpa (30 bar)
Outlet gas Pressuredipende dal miscelatore
Coil power11 W
Weight1,5 kg
Dimensions (mm)150x160x110 mm
