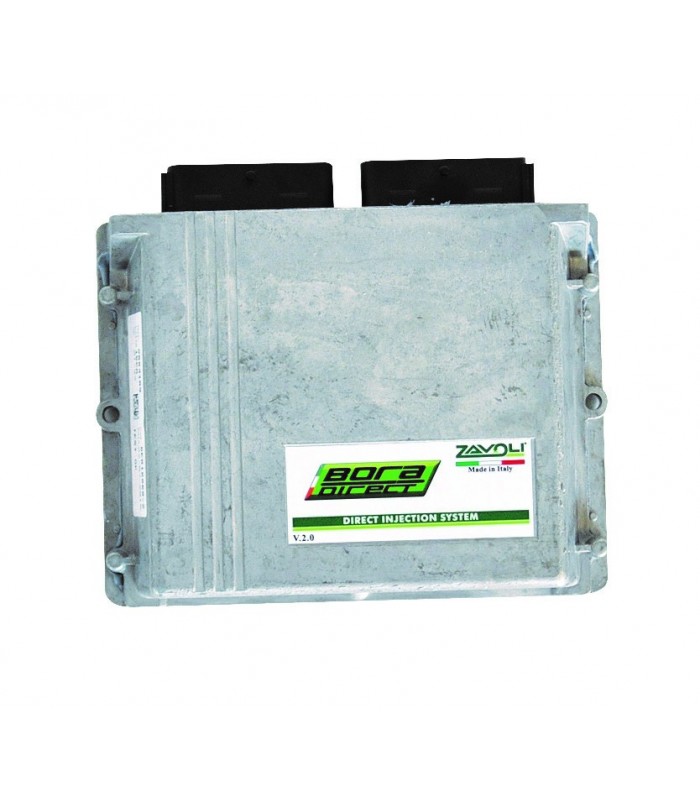

Bora Direct Ecu 3-4 cylinder

DE8160__

Code, Description:

DE816050    Ecu Bora Direct (Modello 50)
DE816060    Ecu Bora Direct (Modello 60)
DE816063    Ecu Bora Direct (Modello 63)
DE816064    Ecu Bora Direct (Modello 64)
DE816065    Ecu Bora Direct (Modello 65)
DE816080    Ecu Bora Direct (Modello 80)
DE816083    Ecu Bora Direct (Modello 83)
DE816090    Ecu Bora Direct (Modello 90)
DE816093    Ecu Bora Direct (Modello 93)

More details


More info

It has the task of collecting and processing all information for correct system management.

Listed below are some functions:

1. Control functioning of the gas injectors.
2. Interrupt and emulate functioning of the original petrol injectors during gas functioning towards the petrol ECU.
3. Exercise self-diagnosis, detecting and memorising faults only of the retrofit kit components that might affect the polluting emissions and automatically control fuelling change-over to petrol (switch-back).
4. Adopt the Safety Car strategy, closing the gas solenoid valves in case of accidental engine stop, even with panel switched on.


Data Sheet
TECHNICAL DATA SHEET
ITEMDETAIL
Automotive microprocessor16 bit - 64 MHz
Operating Temperature-40 °C ÷ 90 °C
Watertight through immersionYes

According to automotive norms for

protections and inlet/outlet signals

Yes
Operating voltage6 V ÷ 16 V
Sensors and actuators diagnosis compatible with EOBDYes
It supports KWP2000 communication protocolYes
It supports CAN 2.0 communicationYes
EMC compliantYes
It pilots up to 4 injectors
Integrated injectors cut and emulationYes
ApprovalR67-01 - R110
