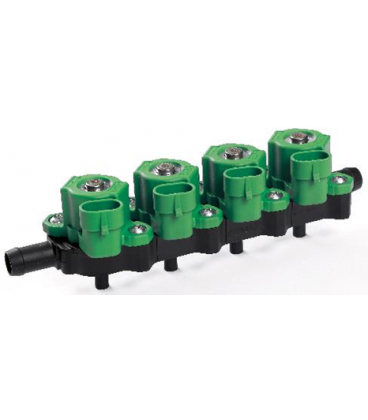

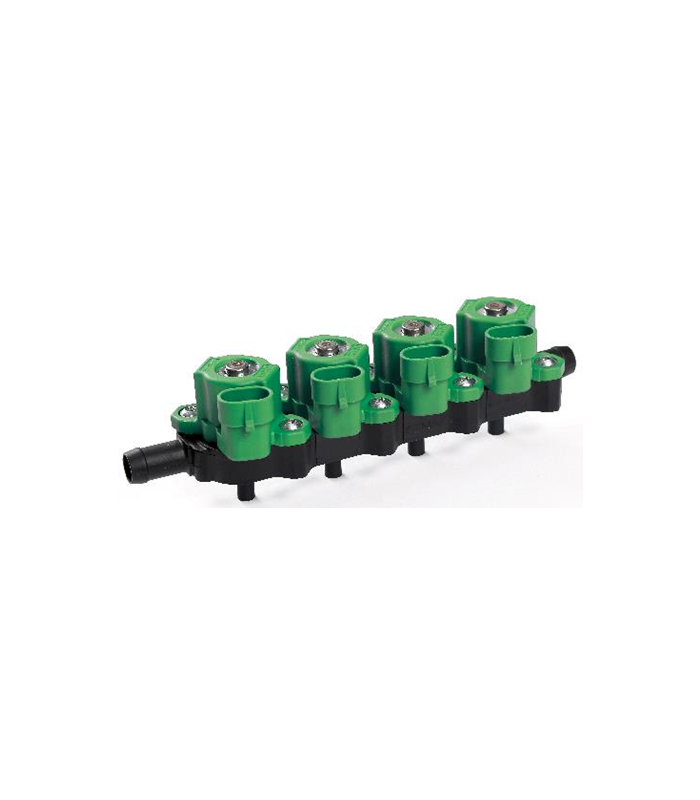

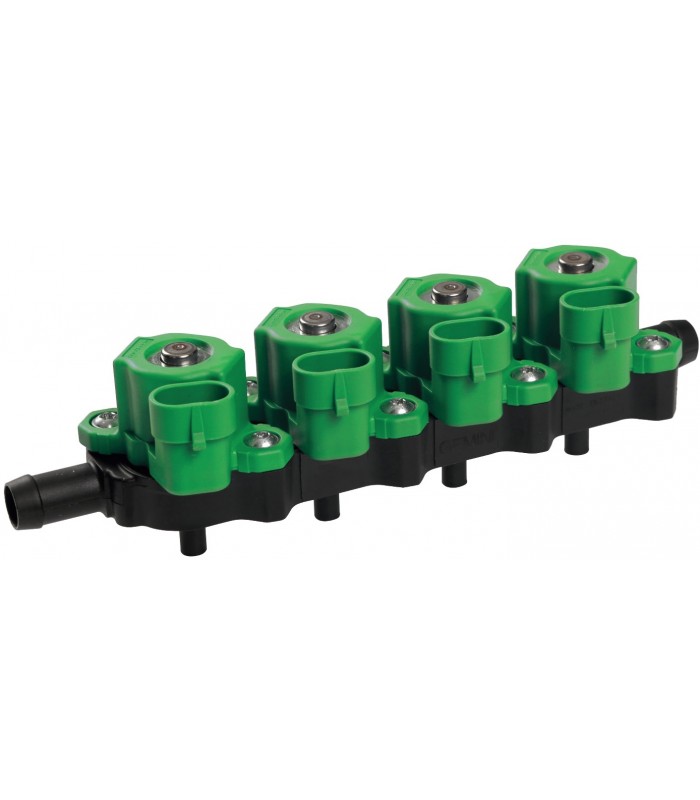

Rail 4 Cylinders JET24 (Gemini)
E09320107

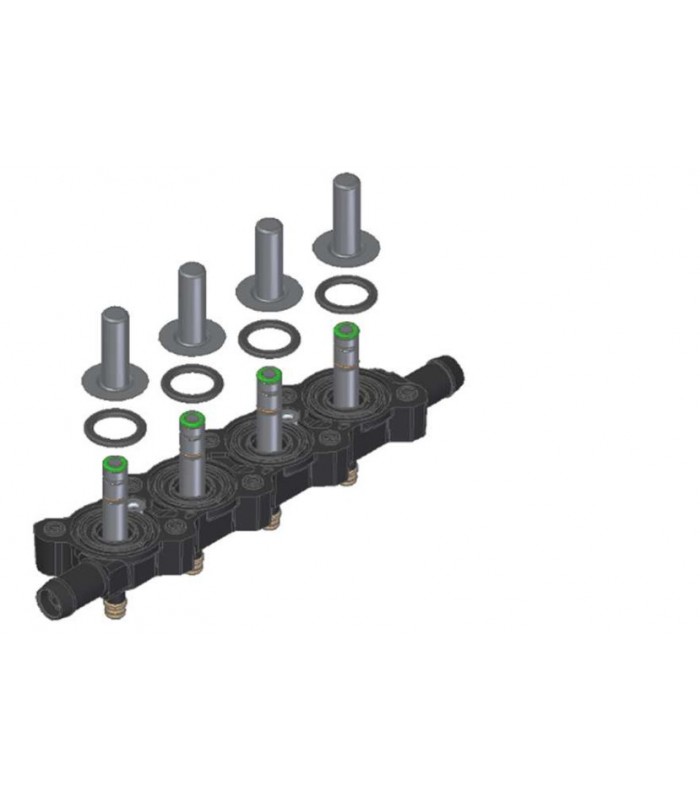

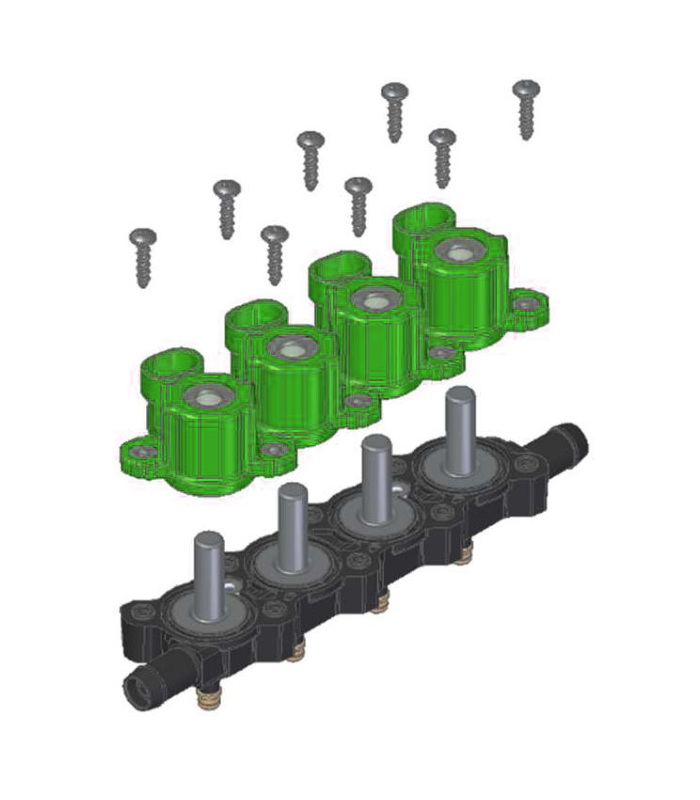

The JET24 injector housed into the “Rail” is a bottom feed injector and it is patent protected. Gas flows from the rail to the bottom of the injector, then it is injected into the intake manifold when the electromagnet moves the shutter to open the passage. Injector to be combined with Bora S32-S64, Kit Bora Dual Jet and LPG systems.
| JET24 INJECTORS (GEMINI) | |
| Fuel | LPG - CNG |
| Injector type | Normally Closed, bottom feed Low resistance, Peak & hold driving strategy |
| Homologations | E4 110R – 000140 (CNG) E4 67R – 010199 (LPG) E4 10R – 041368 |
| Layout Injectors | Rail 2-3-4 Cylinders (Different RAIL) |
| Injectors Rail | Plastic |
| Electrical connection | AMP SuperSeal 1.5 connector |
| Gas inlet | Pipe diameter 12 mm |
| Gas outlet | Pipe diameter 6 mm |
| Resistance | 1,8 Ω |
| Working Pressure | 0,6 ÷ 4,5 bar |
| Operating temperature | -20 ÷ +120°C |
| Operating voltage range | 8 ÷ 16 Vdc |
| Opening time | @ 13,5 V) 1,8 ms @ 1 bar - 1,9 ms @ 2 bar |
| Weight | 2 cyl. - 200 g / 3 cyl. - 280 g / 4 cyl. - 365 g |
| Peak current | 4,6 A |
| Hold current | Min 1.55 A |
| Reliability | 600 million cycles |
