CNG Eletronic AT04 Reducer

CNG Eletronic AT04 Reducer

E010M020__

E010M0204 Redcuer CNG ZAVOLI "AT04" 75KW-

E010M0205 Redcuer CNG ZAVOLI "AT04"105KW-

E010M0206 Redcuer CNG ZAVOLI "AT04" 140KW-

More details

Related Products


More info

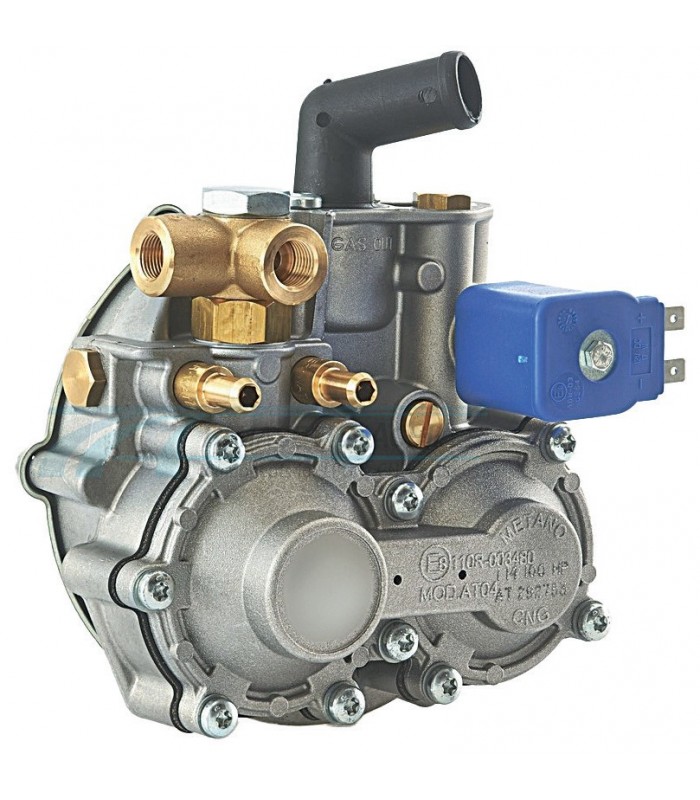

The CNG pressure reducer, model AT04, is a 3 stages reducer for traditional systems; The reducer is equipped with a double regulation system to always obtain the best performances. The adjustable inlet fitting is provided with the connection for the pressure manometer. Model AT04 is available in three versions, dedicated to different types of engines. Includes bracket and accessories.


DATA SHEET
TECHNICAL DATA SHEET
Inlet gas PressureMax 26 Mpa (260 bar)
Outlet gas Pressuredepends on the mixer
CNG flow rate22 kg/h - 30 kg/h - 40 kg/h
Number of Stages3
Coil power17 W
Weight2,12 kg
Dimensions (mm)155x190x110 mm
