JET Injectors

09SQ1200002_____

Code                     Description

09SQ12000029 Injectors JET MY17 (600PAN.JET|MY18)
09SQ12000021 Injectors JET (600PAN.JET)
09SQ12000022 Injectors JET H40 (600PAN.JET H40)

More details


More info

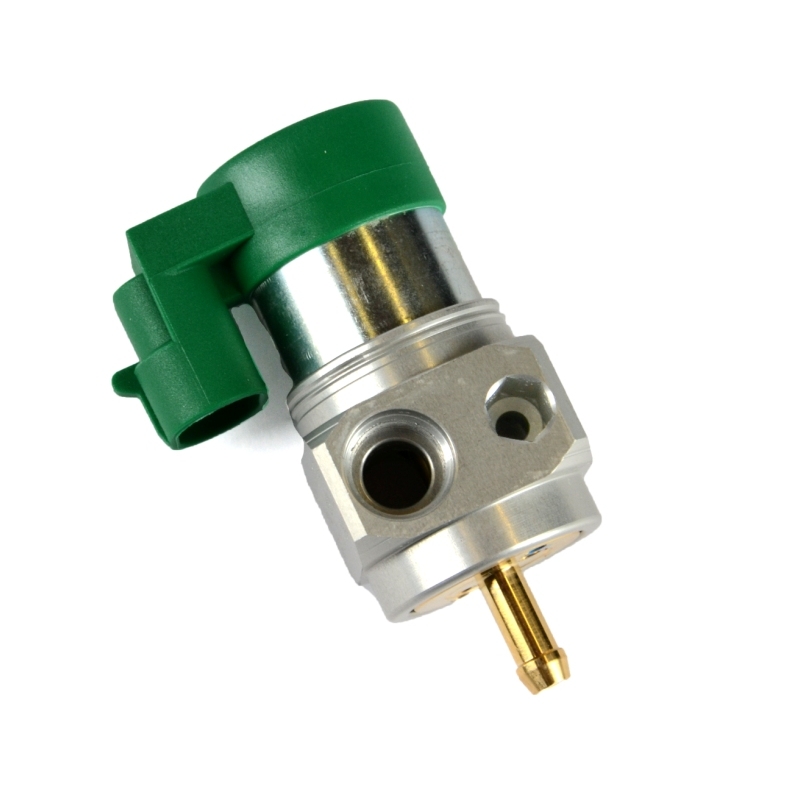

Jet, the new injector for LPG and CNG sequential systems. Jet can satisfy the most sophisticated market demands guaranteeing installation practicality (it will keep the same modularity of former), appealing design, high performances and very fast opening and closing cycles.                                                                                                                                                        The JET injector has been designed to turn the gas flow coming from the Regulator on and off. When the Injector is turned on, the gas flow is conveyed to the engine through a pipe fixed to the intake manifold on the engine head side. One of the characteristics making the JET injector installation so versatile is its modularity: according to the type of engine, it can be assembled individually, in pairs of injectors etc. The electric input to the injectors is supplied by individual plugs connected to the main electric harness. The connectors are gas tight and have a protection rating of IP 54. All components are type-approved as per European standards 10R-02 (Electromagnetic compatibility) 67R-01, 110R-00.


Download

Data Sheet
TECHNICAL DATA SHEET
ITEMDETAIL
Working Pressure0.5 to 2.0 bar
Max Pressure4,5 bar
Coil Resistence2 ± 0,1 ohm at 20°
Alimentation12v ± 15%
Peak current time3 A
Minimun Injection
Pulse
1.9 ms
Inlet gas fittingRubber hose Ø 12 mm
Outlet gas fittingCalibrated nozzles
M 4x0,5 / external Ø 6,2 mm
Calibrated hole range
(for nozzles)
1.5 to 3.0 mm
T range-40/ +120° C
Agreement67R-01 / 110R-00
