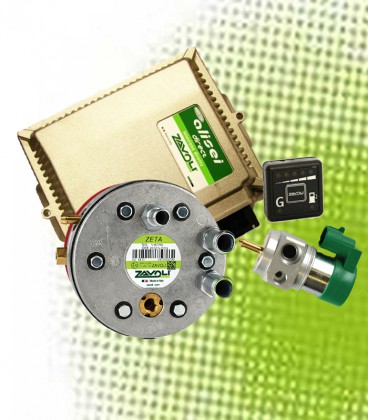

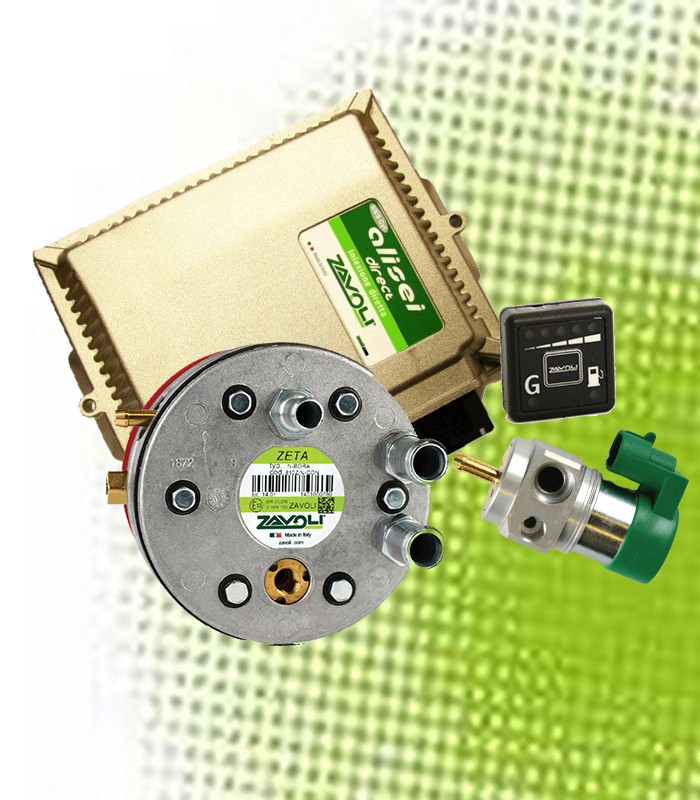

Alisei Direct Kit 6 Cylinders

112KINJ-6___/DIRECT

More info

The Alisei sequential injection system is based on a physical model software structure, helping to calculate gas injection times and to optimise their value under any engine running condition. These calculations are completed and made more effective by information on the engine RPM, gas pressure, gas temperature and water temperature, used to physically modify gas injection times.

The water temperature probe installed on the regulator sends a petrol/gas flow signal after engine start – which, among other things, is a function of the time elapsed after engine start and of engine RPM. The system also includes troubleshooting features and automatically switches to petrol in case of faults (switch-back), storing the component fault to the system memory. Control units available in two versions for 2-3-4 and 5-6-8-10 cylinder engines.


Kit Versions
CodeDescription
112KINJ-6S/DIRECTAlisei Direct super kit 6 cylinders with copper pipe
112KINJ-6SF/DIRECTAlisei Direct super kit 6 cylinders with flexible pipe

Pack content

  • 6 x
    Code                     Description 09SQ12000029 Injectors JET MY17 (600PAN.JET|MY18)  09SQ12000021 Injectors JET (600PAN.JET)09SQ12000022 Injectors JET H40 (600PAN.JET H40)
  • 1 x
    Code             Description E05127012    Brackets and accessories kit 3-4 cylinder (ecu-filter-injectors)E05127014    Brackets and accessories kit 3-4 cylinder (ecu-injectors)E05127011    Brackets and accessories kit 5-6-8 cylinder (ecu-filter-injectors)E05127013    Brackets and accessories kit 5-6-8 cylinder (ecu-injectors)
  • 1 x
    Code, Power Max and Regulation pressure: 01RD00503515 (800ZETA/N)    Up to 135 Kw (183 Hp) - 1.2 bar 01RD00503514 (800ZETA/S)     Up to 250 KW (340 Hp) - 1.4 bar
